PK 53002 SH High Performance
Description
Operator friendly and sensitive controllable. Impressive Attributes for delicate operations.
- Increased comfort and safety due to Soft Stopp
- Maximum utilisation of the working range due to HPSC
- More lifting power due to S-HPLS
- Continous slewing for increased efficiency and speed
- Additional applications with Power Link Plus
Attributes
Max. lifting moment
50.1 mt
Max. lifting capacity
18200 kg
Max. hydraulic outreach
21.0 m
Max. outreach (with fly jip)
32.5 m
Slewing angle
∞
Slewing torque with 1 gear
4.0 mt
Slewing torque with 2 gears
5.5 mt
Stabilizer spread (std)
7.8 m
Width folded
2.51 m
Max. operating pressure
365 bar
Pump capacity
90 - 120 l/min
Dead weight (std.)
4155 kg
Lifting moment
Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)
Crane Weight
Crane Height
Crane Width
Installation WidthA
49.3
7.7
∞
4.0 / 5.5
35.0
90-120
4145
2430
2510
1330
B
47.7
9.7
∞
4.0 / 5.5
35.0
90-120
4410
2430
2510
1330

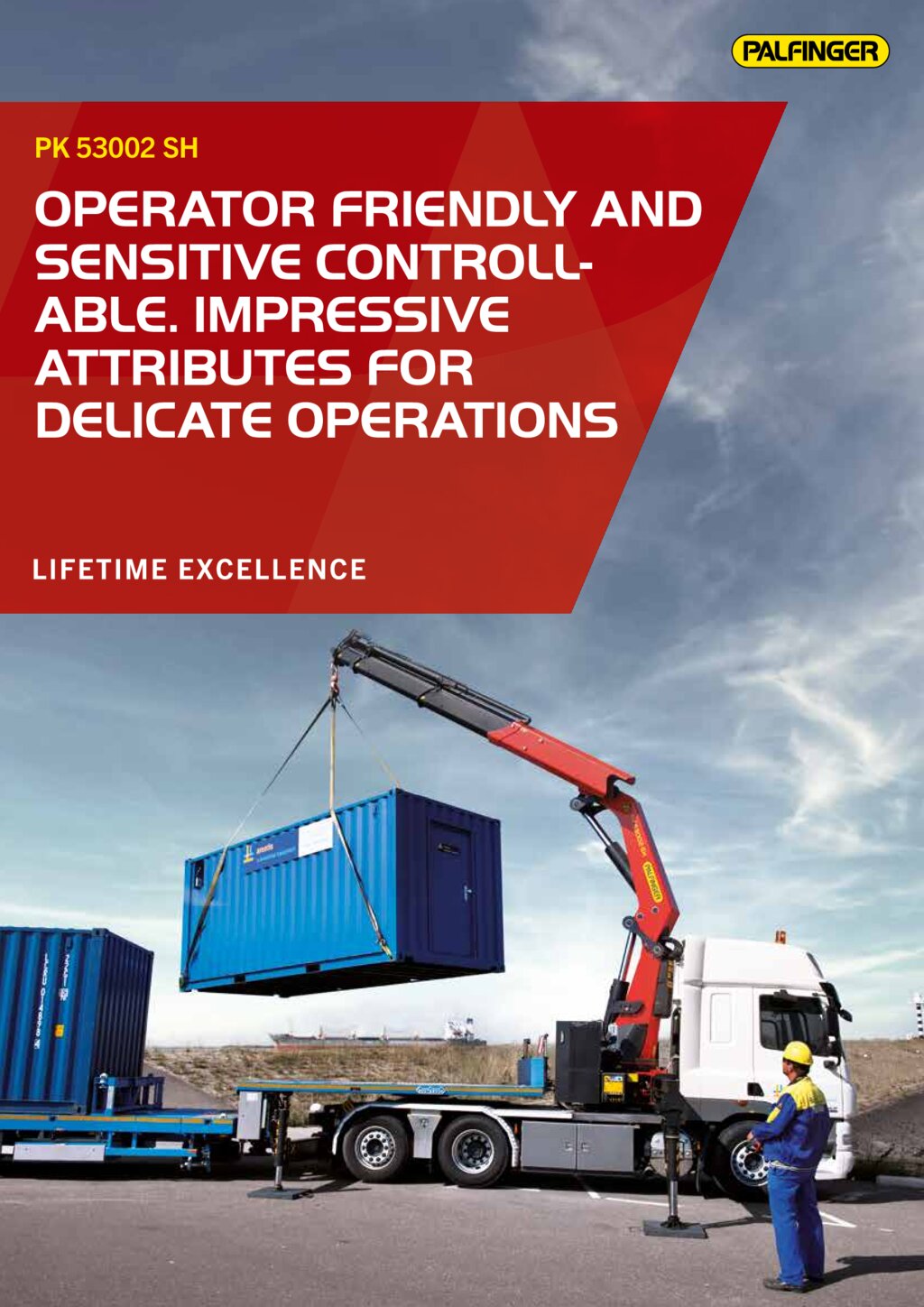

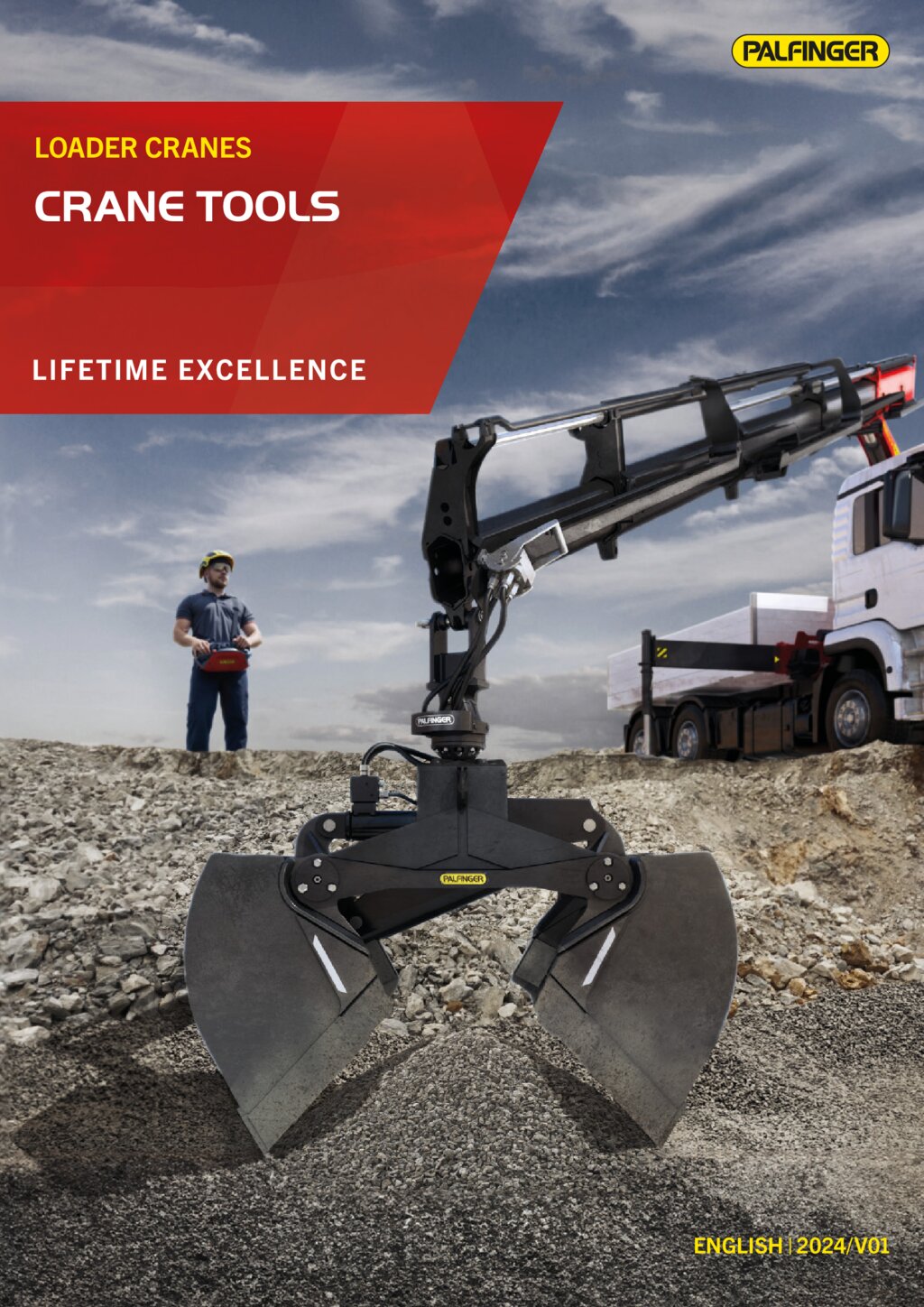

Brochures
